Hydrogen Generator for Industrial, Laboratory, and Energy Applications
Oct 28 , 2025
Introduction
What is a Hydrogen Generator
Working Principle
Types of Hydrogen Generators
Product Description
Main Features
Technical Specifications
Advantages
Applications
Safety and Maintenance
FAQ
Related Products
References
Hydrogen Generator is a professional hydrogen generation system, which can generate hydrogen gas on demand through Pressure Swing Adsorption (PSA) or Water Electrolysis.
Hydrogen is an effective and clean energy vector, widely used in the field of industrial gas, chemical production, fuel cells and metal processing.
Hydrogen Generator has become a highly economical, safe and reliable alternative to traditional hydrogen supply methods (bottled gas, bulk cylinder gas).
A Hydrogen Generator is a system that converts raw materials (water or natural gas) into hydrogen gas.
The purity can reach up to 99.999%.
It can continuously provide high-purity hydrogen gas for user production and research without the need for storage of hydrogen cylinders or frequent replacement.
Hydrogen generated is widely used in semiconductors, glass production, chemical synthesis, hydrogen fuel cells, heat treatment and other fields.
There are two types of hydrogen generation technologies:
1. Water Electrolysis Hydrogen Generator
Water Electrolysis Hydrogen Generator is an electrolysis system that uses electricity to decompose water (H2O) into hydrogen and oxygen.
The electrolysis reaction formula is as follows: 2H₂O → 2H₂ + O₂
The generated hydrogen gas has ultra-high purity, zero CO2 emissions.
Suitable for laboratories, fuel cells, and hydrogen energy systems using renewable energy.
2. PSA (Pressure Swing Adsorption) Hydrogen Generator

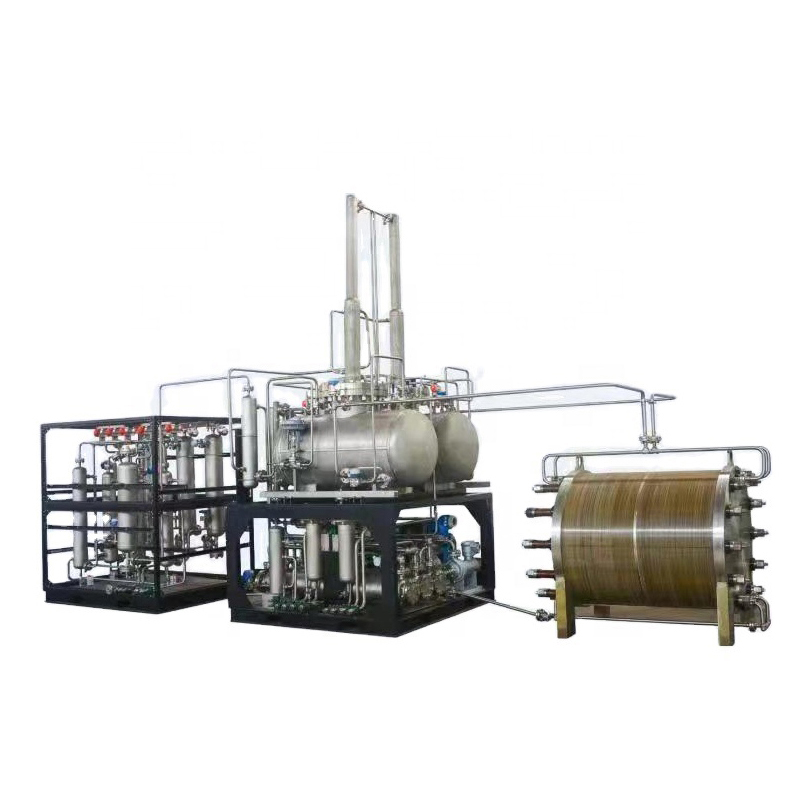

PSA Hydrogen Generator is a hydrogen separation and enrichment system that uses hydrogen-rich gas as raw material (natural gas, biogas, or methanol reformate).
It uses a molecular sieve and adsorbent to separate hydrogen from other impurity gases such as CO2, CO, CH4, N2, and so on under a certain pressure swing condition.
PSA technology is mainly used in industrial gas production plants, ammonia plants, and refineries.

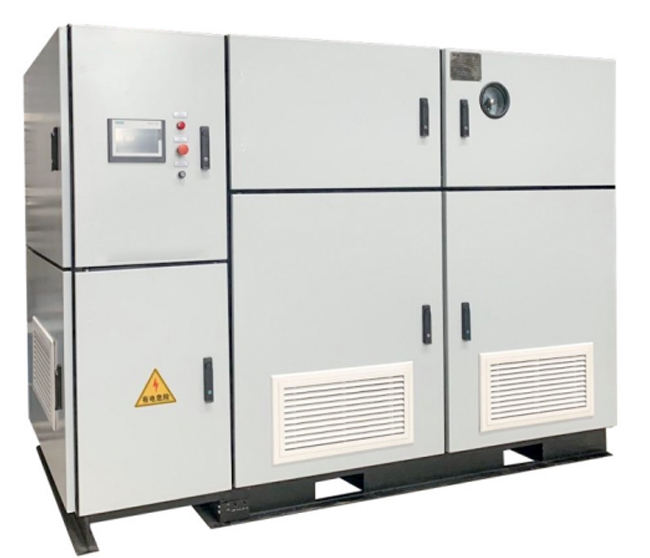

The Hydrogen Generator is a complete set of equipment that integrates advanced PLC control, high-efficiency compressor, and automatic purification system.
It is fully automatic, stable operation and ensure gas purity.
Its modular design is easy to install and scale up based on production requirements.
l Stainless steel pipelines resistant to corrosion.
l Safety valves and hydrogen detectors to prevent explosions.
l Touchscreen operation panel.
l Energy saving, low noise and easy to maintain.
l Continuous 24 hours hydrogen production with purity up to 99.999%.
l 99.9%–99.999% high purity hydrogen
l Compact modular structure for easy installation and maintenance
l Automatic control system with full PLC
l Energy Saving
l Safe and Reliable, Hydrogen Leak Detection and Automatic Shutdown
l Environmentally Friendly, Zero CO₂ Emission in Electrolytic Model
l Adjustable Flow Rate
|
Parameter |
Specification |
|
Hydrogen Purity |
99.9%–99.999% |
|
Hydrogen Flow Rate |
1–500 Nm³/h |
|
Pressure Range |
0.8–3.0 MPa |
|
Operating Temperature |
5–45°C |
|
Power Supply |
220V / 380V, 50Hz |
|
Technology |
PSA / Water Electrolysis |
|
Control System |
PLC + Touchscreen Interface |
|
Cooling Method |
Air / Water Cooling |
l On-site production, no longer need to wait for cylinder delivery and logistics.
l High purity hydrogen, suitable for fuel cells, laboratories and chemical industry.
l Economical operation and maintenance cost.
l Environmentally friendly, green zero emission hydrogen.
l High reliability, 24/7 continuous operation.
l Compact size, takes up little space for factories or laboratories.
l Hydrogen Generator is used in:
l Fuel cell energy equipment
l Chemical and petrochemical industry
l Metal heat treatment
l Glass and semiconductor production equipment
l Hydrogen refueling station
l Gas supply for pharmaceutical, laboratory
Hydrogen generators play an important role in promoting the hydrogen economy, hydrogen fuel cell vehicles and supplying clean hydrogen energy for transportation, industry and power.
Hydrogen is a flammable and explosive gas, therefore our Hydrogen Generator includes multiple safety functions:
l Hydrogen leak detection sensor
l Overpressure protection valve
l Flame arrestor and gas purification filter
l Automatic shutdown in abnormal conditions
For maintenance, just regularly check the filters, seals, and cooling system.
This will ensure a long service life and stable gas production.
A: The Hydrogen Generator can produce hydrogen with a purity of up to 99.999%.
A: Yes. The Hydrogen Generator can use solar or wind energy to produce green hydrogen, but it must be a water electrolysis model.
A: PSA is to separate and enrich hydrogen from hydrogen-rich gas sources (natural gas, biogas), while electrolysis is to use water and electricity to produce hydrogen.
A: Chemical industry, glass production, metallurgy, semiconductor industry, and hydrogen energy all can use Hydrogen Generators.
